Purlins
Our company designs highly durable range of Purlins that is installed for supporting the load of roof deck and building wall. These purlins save up to 50% of structure cost in comparison to other tools. The purlins are horizontal in structure and are available in both standard and customized specifications. We use genuine materials in manufacturing these purlins. Our purlins come in perfect dimensions with easy installation and ability to span length.
We offer these purlins in three broad ranges, which are
- C Purlins
- Z Purlins
- Galvanized Purlins

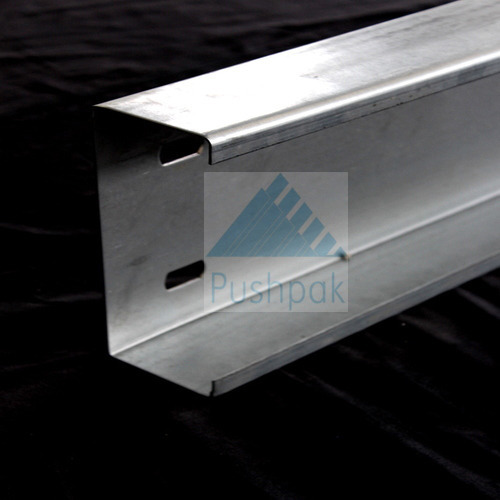

C Purlins
Our company designs quality certified range of C Purlins that is widely fixed in workshops, garages, warehouses, industrial sheds and many more. The C purlins are highly durable and suitable for shorter runs. These are horizontal structures that support the load from the sheeting or the roof deck. Further, these are easier to install and lighter in weight. It has superior tolerance on sectional sizes due to the process of cold roll forming.
Specifications
- Material : Red oxide primed, galvanized, stainless steel
Technical Specifications
Web |
Flange |
Lip |
Thickness |
160 |
60 |
20 |
1.6 to 3mm |
200 |
70 |
20 |
1.6 to 3mm |
250 |
80 |
20 |
1.6 to 3mm |
300 |
70 |
20 |
1.6 to 3mm |
300 |
50 |
20 |
1.6 to 3mm |
Features
- Easy to install
- Superior tensile strength
- Abrasion & corrosion resistant
- Easy handling
- Free from side drilling
- Precise dimensions
- Highly durable
- Versatility & uniform quality
- Cost effective
- Optimum quality
Applications
We welcome your enquiry & try to respond in shortest possible time

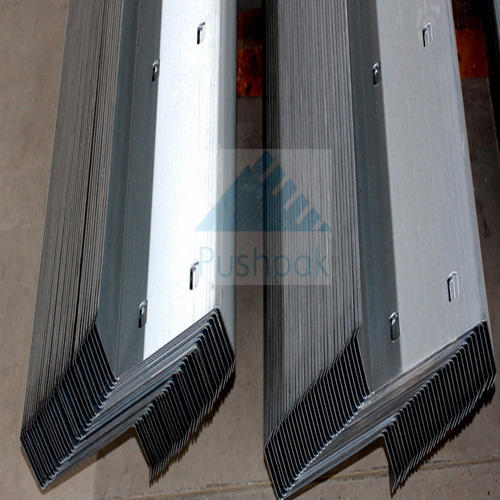

Z Purlins
We are providing finest grade Z Purlins, which are especially used for supporting roof. These are constructed from cold-formed or rolled sheets that add to their flexibility. We find their wide applications in workshops, railway stations, warehouses, industrial sheds and many other places. The sheets keep around 50% of structural cost in comparison to hot rolled angles. Purlins are precise in designs and come with accurate straightness.
Specifications
- Material : Red Oxide Primed, Galvanized, stainless steel
Technical Specifications
Web |
Flange |
Flange |
Lip |
Thickness |
200 |
50 |
54 |
20 |
1.6 to 3mm |
160 |
70 |
60 |
20 |
1.6 to 3mm |
200 |
70 |
60 |
20 |
1.6 to 3mm |
220 |
80 |
70 |
20 |
1.6 to 3mm |
250 |
80 |
70 |
20 |
1.6 to 3mm |
300 |
80 |
70 |
20 |
1.6 to 3mm |
Features
- Comes with immense cost benefits
- Easy handling
- Quick erection
- Accurate straightness
- Perfect dimensions
- Superb design
- Ability to span length
- Highly durable
- Uniformity & versatility
Applications
- Garages
- Warehouses
- Carports
- Workshops
- Industrial sheds
We welcome your enquiry & try to respond in shortest possible time

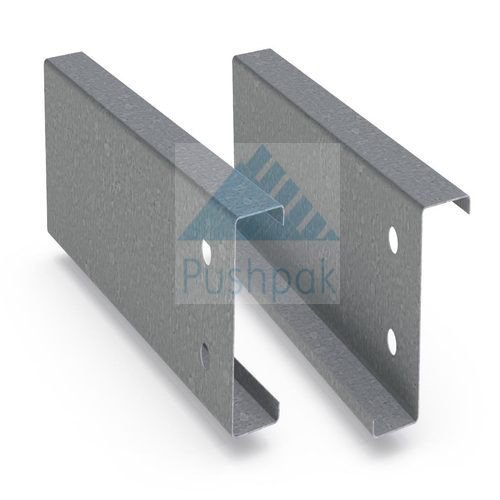

Galvanized Purlins
Our company is offering supreme quality Galvanized Purlins, which are majorly used in both commercial and industrial establishments due to their cost effectiveness and sturdiness. We offer these purlins in both C & Z shapes, in cut to length that are suited for garages, warehouses, industrial sheds, carports and many other structures. The galvanized purlins are rustproof and can withstand tough weather conditions with ease.
Specifications
- Material : Red Oxide Primed, Galvanized, stainless steel
Technical Specifications
Web |
Flange |
Flange |
Lip |
Thickness |
200 |
50 |
54 |
20 |
1.6 to 3mm |
160 |
70 |
60 |
20 |
1.6 to 3mm |
200 |
70 |
60 |
20 |
1.6 to 3mm |
220 |
80 |
70 |
20 |
1.6 to 3mm |
250 |
80 |
70 |
20 |
1.6 to 3mm |
300 |
80 |
70 |
20 |
1.6 to 3mm |
Features
- Easy to install
- Superior tensile strength
- Abrasion & corrosion resistant
- Easy handling
- Available in both C & Z shapes
- Comes in standard & customized specifications
- Highly durable
- Corrosion free
- Light in weight
Applications
- Workshops
- Industrial sheds
- Carports
We welcome your enquiry & try to respond in shortest possible time

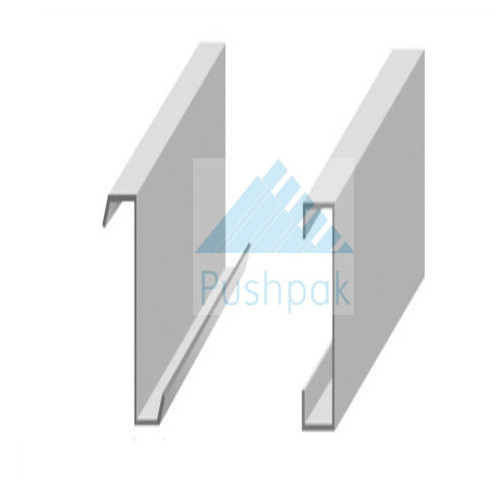

Industrial Purlins
Our company designs a highly durable range of Industrial Purlins that is installed for supporting the load of the roof deck and building a wall. These purlins save up to 50% of structure cost in comparison to other tools. The purlins are horizontal in structure and are available in both standard and customized specifications. We use genuine materials in manufacturing these purlins. Our purlins come in perfect dimensions with easy installation and ability to span length.
